RF, Microwave & Millimeter Wave Amplifiers

600+ Amplifier Models in Stock & Growing

600+ Wideband Models & Growing Gain blocks, low noise amplifiers, power amplifiers, RF transistors, Class-A and Class-AB amplifiers, linear amplifiers, 75Ω CATV amplifiers, dual-matched amplifiers, variable gain amplifiers, pulse amplifiers and more!
  • Connectorized, MMIC surface mount, bare die & waveguide interfaces
  • In-house design and manufacturing
  • Industry-leading quality and reliability
  • Cost-effective custom solutions

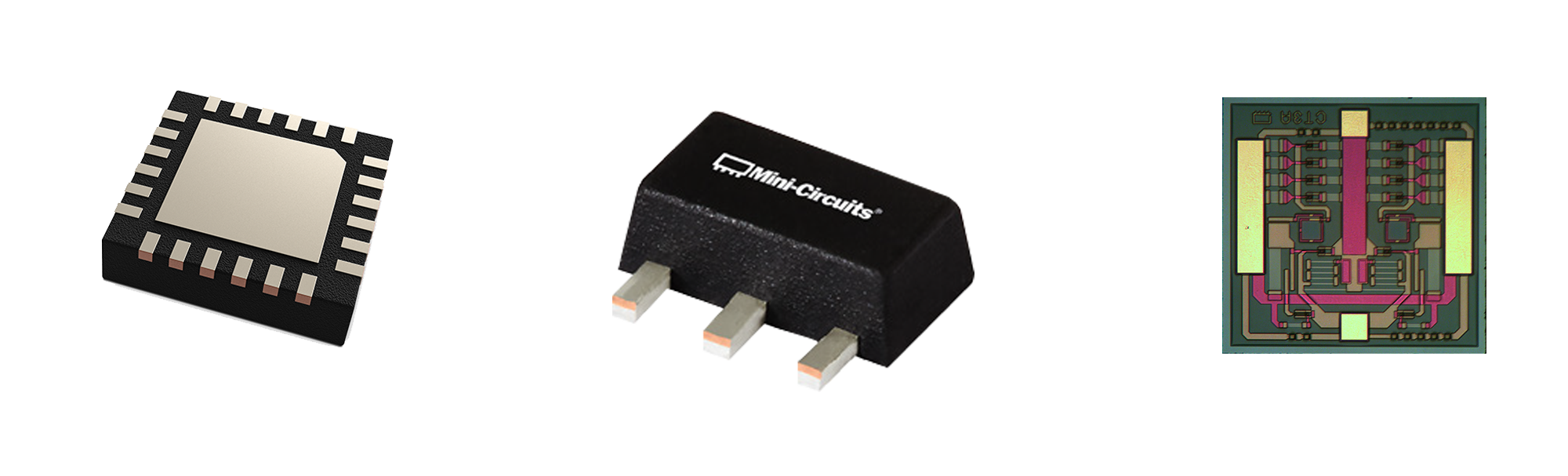

MMIC Amplifiers

Connectorized RF Amplifiers

Millimeter Wave Amplifiers

Catalog Products

For special & custom products, please contact us.

About
   Table of Models
   Advanced Search



Export to Excel

Send to a Friend

Interface
SMT
Die
Connector
Plug-in
Rack

Category
Low Noise Amplifiers
(NF < 3 dB)
Gain Blocks

High Power Amplifiers
(>2W)
Variable Gain
Amplifiers
Linear Amplifiers
(IP3 > +40 dBm)
Dual Matched
Amplifiers
CATV Amplifiers (75Ω)
Pulse Amplifiers
RF Transistors
F Low
(MHz)
F High
(MHz)
Gain
(dB) Typ.
NF
(dB) Typ.
P1dB
(dBm) Typ.
PSAT
(dBm) Typ.
OIP3
(dBm) Typ.
Voltage
(V)
Current
(mA)
≤

Options
Bracket
Heat Sink

Case Style
Connector
Type
1.0mm
1.85mm
2.4mm
2.92mm
BNC
MCX / N
N
SMA
SMA-N
WR12
WR19
MCX-SMA
WR15
SMA-F
WR10
MCX-7/16 DIN
Model Number F Low
(MHz)		 F High
(MHz)		 Gain
(dB) Typ.		 NF
(dB) Typ.		 P1dB
(dBm) Typ.		 PSAT
(dBm) Typ.		 OIP3 (dBm) Typ. Input VSWR
(:1) Typ.		 Output VSWR
(:1) Typ.		 Voltage
(V)		 Current
(mA)		 Case Style Connector
Type
Sort Sort Sort Sort Sort Sort Sort Sort Sort Sort Sort Sort Sort Sort
AVA-5R183-D+ 500 18000 13.3 2.8 18.6 - 23.3 1.33 1.119 5 85

-
AVA-24A-D+ 5000 22000 13 5.8 19.2 - 25 1.3 1.9 5 126

-
AVA-054-D+ DC 50000 16.1 4 19.3 - 26.9 1.32 1.37 5 160

-
AVA-183A-D+ 5000 20000 14.5 4.3 18.2 - 25 1.6 1.7 5 131

-
AVA-183MP-D+ DC 18000 14.5 2.8 23.2 - 29.5 1.49 1.25 8 160

-
AVA-183P-D+ 500 18000 8.1 4.8 11.7 - 21.5 1.67 1.92 5 46

-
AVA-223MP-D+ 0.1 22000 13.7 3.1 25.9 - 37.9 1.32 1.32 10 300

-
AVA-0233LN-D+ 2000 30000 17 2.2 13.5 - 25.7 1.33 1.22 5 65.2

-
AVA-2183-D+ 2000 18000 17.2 5.5 19.6 - 27.4 1.49 1.25 4 210

-
AVA-6183MP-D+ 6000 18000 19.1 5.0 27.3 - 37.2 1.67 1.25 6 550

-
AVA-6183MPS-D+ 6000 18000 20.9 5.8 26.9 - 33.3 1.49 1.25 6 663

-
AVA-17303-D+ 17000 31500 19.2 3.6 23.8 - 36 2.10 1.58 6 160

-
AVA-20453BL-D+ 20000 45000 23.5 9.7 23 - 30 1.3 1.3 5 450

-
AVA-20453MP-D+ 20000 45000 20.8 9.2 20.5 - 27.7 1.67 1.28 4.5 300

-
AVA-26453LN-D+ 26000 45000 22.2 2.9 11.1 - 19.2 1.68 1.49 3 80

-
EHA-24L-D+ DC 20000 13.4 5.1 6.8 - 16.6 1.433 1.377 5 19.1

-
ERA-51SM-D+ DC 4000 16.1 4.1 18.1 - 33 1.1 1.2 4.5 65

-
GALI-39-D+ DC 7000 19.7 2.4 10.5 - 22.9 1.79 2.3 3.5 35

-
GALI-S66-D+ DC 3000 18.2 2.4 3.3 - 19.1 1.1 1.2 3.5 16

-
GVA-60-D+ 10 6000 19.3 3.9 18.2 - 29 1.45 2.2 5 93

-
GVA-62-D+ 10 6000 15.7 5 19.4 - 32.8 1.4 1.4 5 82

-
GVA-63-D+ 10 6000 20.5 3.7 18.2 - 31.9 1.18 1.5 5 69

-
GVA-81-D+ DC 6000 10 7.4 19.7 - 36.6 1.3 1.3 5 103

-
GVA-84-D+ DC 7000 16 5.5 21 - 35.8 1.28 2.58 5 108

-
GVA-123-D+ 10 12000 16.7 3.9 15.9 - 29.1 1.2 1.2 5 48

-
LVA-273PN-D+ 10 26500 18 3.6 18.5 - 27.7 1.22 1.23 5 85

-
LVA-6183PN-D+ 6000 18000 19.5 4.1 19.3 - 28.9 1.23 1.22 6 123

-
MAR-8A-D+ DC 1000 31.5 3.1 12.5 - 25 1.4 1.79 3.7 36

-
MNA-2A-D+ 500 4500 14.7 5.4 17.5 - 29 1.3 1.5 2.8/5.0 79/84

-
MNA-3A-D+ 500 2500 16.8 3.9 10.3 - 22 1.3 1.2 2.8/5.0 32.6/34.3

-
MNA-4A-D+ 500 4500 17 4.5 16.8 - 27.9 1.5 1.5 2.8/5.0 70.6/75

-
MNA-5A-D+ 500 4500 19.2 3.2 8.7 - 19.1 1.3 1.6 2.8/5.0 32/34

-
MNA-6A-D+ 500 5500 23.2 2.7 19.2 - 30 1.4 1.2 2.8/5.0 92/99

-
MNA-7A-D+ 1500 6000 17.7 5.7 17.1 - 28.5 1.8 1.2 2.8/5.0 77/82

-
PGA-32-75-D+ 5 300 15.6 2.9 23.7/18.0 - 43.3/31.6 1.16 1.08 9.0/5.0 110/50.7

-
PGA-103-D+ 50 4000 11.3 0.8 22.3 - 41.6 1.5 1.4 5 60/97

-
PGA-105-D+ 40 2600 15.1 1.9 18.4 - 36.9 1.2 1.2 5 65

-
PHA-1-D+ 50 6000 13.6 2.1 22.5 - 39 1.6 1.3 5 155

-
PHA-1H-D+ 50 6000 13.8 2.2 22.6 - 41 1.39 1.23 5 132

-
PHA-13HLN-D+ 1 1000 23 1.1 19/24/18 - 33/40/43 1.34 1.3 3.0/5.0/8.0 71/138/234

-
PHA-23HLN-D+ 30 2000 21 1.2 19/24/28 - 31/37/44 1.94 1.48 3.0/5.0/8.0 72/141/235

-
PHA-83W-D+ 50 8000 15.7 3.3 23.3 - 35.5 1.57 1.28 5.0/9.0 41/110

-
PHA-101-D+ 50 1500 15.2 4 25.8 - 45 1.824 1.894 9 182

-
PHA-102-D+ 50 6000 14.5 3.4 26.4 - 50 1.5 1.32 9 192

-
PHA-202-D+ 30 2700 17 3.5 30.4 - 46.1 1.23 1.24 11 350

-
PMA-183PLN-D+ 6000 18000 27.5 1.2 9.6 - 22.4 1.5 1.5 2.6 57

-
PMA-545G1-D+ 400 2200 31.1 1 23.4 - 36.1 1.92 1.33 5 158

-
PMA2-33LN-D+ 400 3000 18.4 0.47 17.6 - 33.8 1.5 1.1 3 58

-
PMA2-43LN-D+ 1100 4000 19.4 0.6 20.4 - 32.9 1.3 1.7 5 53

-
PMA2-63LN-D+ 400 6000 19.3 0.4 16.4 - 30.1 1.57 1.91 5 36.4

-
PMA2-123LN5-D+ 500 12000 15.1 1.2 12.2 - 23.4 1.9 1.3 5 30

-
PMA2-133LN-D+ 10000 13000 15.3 1.3 13.5 - 28.6 1.24 1.08 3.0/5.0 13/29

-
PMA2-153LN-D+ 500 15000 16.8 2.6 14.8 - 26.8 1.97 1.15 5.0/6.0 50/66

-
PMA2-162LN-D+ 700 1600 22.7 0.5 20 - 30 1.3 1.3 4 55

-
PMA2-183LN-D+ 4000 18000 10.4 2.5 14.2 - 25.6 1.79 1.43 5 48.2

-
PMA3-14LN-D+ 50 10000 22.6 1.8 22 - 30.4 1.49 1.28 6 67

-
PMA3-63GLN-D+ 1800 6000 27.9 0.7 14.1 - 26.6 1.78 1.92 5.0 69

-
PMA3-83LN-D+ 500 8000 21.9 1.2 21.2 - 35 1.4 1.8 5.0/6.0 60/77

-
PMA3-83LNW-D+ 400 8000 22.6 1.2 21.7 - 37.0 1.32 1.5 5.0/6.0 58/75

-
PMA3-83MP-D+ 400 8000 21 3.2 27.8 - 37.9 1.78 1.43 8 144

-
PMA3-453-D+ 10000 45000 25.5 2.4 11.7 - 23.4 1.92 1.43 4 68

-
PMA3-15453-D+ 15000 45000 15.6 3.6 17 - 24 1.54 1.65 5 128

-
PMA4-6263LN-D+ 6000 26500 23.4 2.1 12 - 23.3 1.9 1.9 4 55

-
PMA4-8243LN-DG+ 8000 24000 23.9 1.8 12.5 - 24.8 1.67 1.43 5 73

-
PMA5-83-2W-D+ 10 10000 13.6 3.9 30.9 - 42.5 1.31 1.55 12 400

-
PMA5-123-3W-D+ 8000 12000 29.8 7.1 34.7 - 39 1.54 1.53 7 1250

-
PSA-0012-D+ 50 6000 15.6 2.4 22.2 - 35 1.51 1.34 5 92

-
PSA4-5043-D+ 50 4000 18.4 0.8 19 - 34 1.7 1.5 5 33/58

-
PVGA-123-D+ 400 12000 15.6 4.5 20.2 - 30.0 1.59 1.49 6 77

-
PVGA-273-D+ 300 26500 15.7 2.1 17.3 - 28.8 1.37 1.43 5/8 80

-
SAV-541-D+ 450 6000 19.1 0.38 21 - 33.1 - - 3/4 15/30/60

-
TAV2-14LN-D+ 50 10000 16.4 0.7 18.8 - 30.9 2.615 1.577 2/4 20/40

-
TAV2-501-D+ 400 3900 15.1 1.3 27.7 - 42.9 - - 4.5 280 -

-
TSS-13HLN-D+ 1 1000 23 1.4 28.4 - 42.9 1.43 1.37 8/5/3 234/142/72

-
TSS-23HLN-D+ 30 2000 21.8 1.4 28.5 - 42.6 1.92 1.67 8/5/3 236/139/74

-
TSS-44-D+ 22000 43500 17.6 3.2 6.9 - 12.7 1.37 1.28 4 22

-
TSS-53LNB-D+ 500 6000 21.4 1.3 19.4 - 35 1.2 1.4 5 82

-
TSY-83LN-DG+ 400 8000 23 1.4 22.8 - 34.6 1.35 1.22 5.0/6.0 76/104

-
TSY-172LNB-D+ 30 1700 13.1 1.4 17.5 - 24.7 1.9 1.5 2.7 7.7

-
TSY-173LN-D+ 13500 17000 16.5 1.1 8.7 - 24.2 1.28 1.19 3 13.2

-
