RF Power Sensors

For CW, RMS, Peak & Average Measurements

The RF power sensor from Mini-Circuits has been developed to provide a reliable and affordable option for any test requirement, budget, and experience level.

The PWR series features a high range of performance sensors, including up to a 40 GHz power sensor and supporting measurements of any type of signal from CW / single tone applications, to pulsed signals and most modern digital modulations.

Input power ranges down to -60 dBm are ideal for measurement of transmitted signals and characterization of components with high loss or rejection (such as filters). Sample rates up to 80 million samples per second allow detailed signal analysis with very fine measurement resolution.

Frequency Ranges Spanning
9 kHz - 40 GHz

Dynamic range options spanning
-60 to +20 dBm

CW, true RMS peak and average measurement capability

USB rf power sensor and ethernet control options

Want to Learn More?

For more information about our world-renowned and affordable RF power sensors and what they can do for you, click on the blogs below:

Mon, 17 Mar 2025 16:47:46 +0000 | Engineering Resources

Measuring Pulsed RF Power

Tue, 17 Dec 2024 21:16:02 +0000 | Engineering Resources

Remote Testing with RF Power Sensors

Wed, 06 Nov 2024 20:24:30 +0000 | Amplifiers

RF Amplifier and Filter Testing with Mini-Circuits Power Sensors

Fri, 26 Jul 2024 19:04:00 +0000 | Engineering Resources

Wideband Peak & Average Power Sensor with 80 Msps Sample Rate

Power Sensors | USB / Ethernet | 9 kHz to 40 GHz | -60 to +20 dBm

Model Number Case Style Control Sensor Type Impedance (Ω) F. Low (MHz) F. High (MHz) Input Power (dBm), Min Input Power (dBm), Max Dynamic Range (dB), Typ Measurement Speed (ms)
Sort Sort Sort Sort Sort Sort Sort Sort Sort Sort Sort
PWR-2.5GHS-75 JL1337
LxWxH
4.390x1.740x.95
 		USB CW 75 0.1 2500 -30 +20 50 30
PWR-4GHS JL1504
LxWxH
4.890x1.740x.95
 		USB CW 50 0.009 4000 -30 +20 50 30
PWR-6GHS JL1504
LxWxH
4.890x1.740x.95
 		USB CW 50 1 6000 -30 +20 50 30
PWR-6LGHS JL2169
LxWxH
4.95x1.75x1.08
 		USB CW 50 50 6000 -45 +10 55 30
PWR-6LRMS-RC JL1941
LxWxH
4.95x1.74x1.08
 		USB & Ethernet RMS 50 50 6000 -45 +10 55 30
PWR-6RMS-RC JL1941
LxWxH
4.95x1.74x1.08
 		USB & Ethernet RMS 50 50 6000 -35 +20 55 30

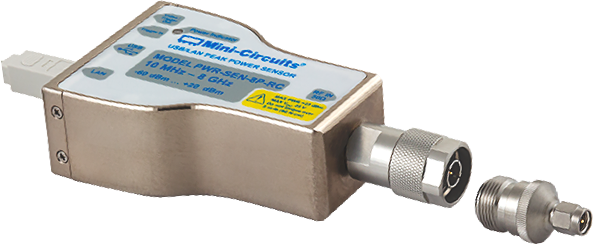

PWR-8P-RC JL2441
LxWxH
4.85x2.50x1.20
 		USB & Ethernet Peak & Avg. 50 10 8000 -60 +20 80 0.002
PWR-8FS JL1504
LxWxH
4.890x1.740x.95
 		USB CW 50 1 8000 -30 +20 50 10
PWR-8GHS JL1504
LxWxH
4.890x1.740x.95
 		USB CW 50 1 8000 -30 +20 50 30
PWR-8GHS-RC JL1941
LxWxH
4.95x1.74x1.08
 		USB & Ethernet CW 50 1 8000 -30 +20 50 30
PWR-8PW-RC JL2441
LxWxH
4.85x2.50x1.20
 		USB & Ethernet Peak & Avg. 50 10 8000 -60 +20 80 0.00005
PWR-9PWHS-RC JL3470
LxWxH
4.68x2.50x1.20
 		USB & Ethernet Peak & Avg. 50 50 9000 -60 +20 80 0.000013
PWR-9RMS-RC JL3470
LxWxH
4.68x2.50x1.20
 		USB & Ethernet RMS 50 50 9000 -60 +20 80 0.5
PWR-18PWHS-RC JL3470
LxWxH
4.68x2.50x1.20
 		USB & Ethernet Peak & Avg. 50 50 18000 -60 +20 80 1.30e-5
PWR-18RMS-RC JL3470
LxWxH
4.68x2.50x1.20
 		USB & Ethernet RMS 50 50 18000 -60 +20 80 0.5
PWR-40PW-RC JL3257
LxWxH
4.97x2.50x1.20
 		USB & Ethernet Peak & Avg. 50 500 40000 -20 +20 40 5.00E-05

Frequency & Power Sensor | USB / Ethernet | 1 MHz to 6 GHz | -30 to +20 dBm

Model Number Case Style Control Sensor Type F. Low (MHz) F. High (MHz) Input Power (dBm), Min. Output Power (dBm), Max. Dynamic Range (dB), Typ. Power Meas. Speed (mS), Typ. Freq. Sample Time (S), Min. Freq. Sample Time (S), Max.
Sort Sort Sort Sort Sort Sort Sort Sort Sort Sort Sort Sort
FCPM-6000RC JL2029
LxWxH
5.00x2.66x1.36
 		USB & Ethernet CW 1 6000 -30 +20 50 30 0.1 3

Frequently Asked Power Sensor Questions

What Are Peak Power Sensors?
Peak power sensors are high-performing sensors designed for the measurement of modulated and fast-pulsed signals. These sensors offer peak, average, and statistical analysis (including crest factor and duty cycle) of power samples. Peak power sensors can trace modulation and pulse profiles over time, with a video bandwidth of up to 30 MHz, supporting rise and fall time measurements as low as 12 nanoseconds. Additionally, these sensors feature a video output port for the analysis of pulse profiles using an external oscilloscope.
What Are True RMS Power Sensors?
True RMS power sensors are available as a cost-effective measurement of power over time. These sensors can measure modulated and multi-tone signals, as well as pulsed signals with moderate duty cycles of 2% or higher.
What Are CW (Average power) sensors?
CW power sensors are the most cost-effective solution for average power measurement of CW and single-tone signals are ideal for lab testing and signal-level calibration of test systems. The FCPM-6000RC model offers both power and frequency measurement capabilities, featuring an integrated LCD screen for convenient data display
Software for RF Power Sensors
The software complementing our RF power sensors guide the user through the settings and displays current measurements. This feature offers powerful data recording and export capabilities, including a full API for Windows and Linuxm, complete with programming instructions and examples. Control is available via a USB RF power sensor, or ethernet power sensor, and some models feature an integrated LCD for convenience.
