Mesh Network Test Systems

Simulate Real World Mesh Conditions in Your Lab Environment

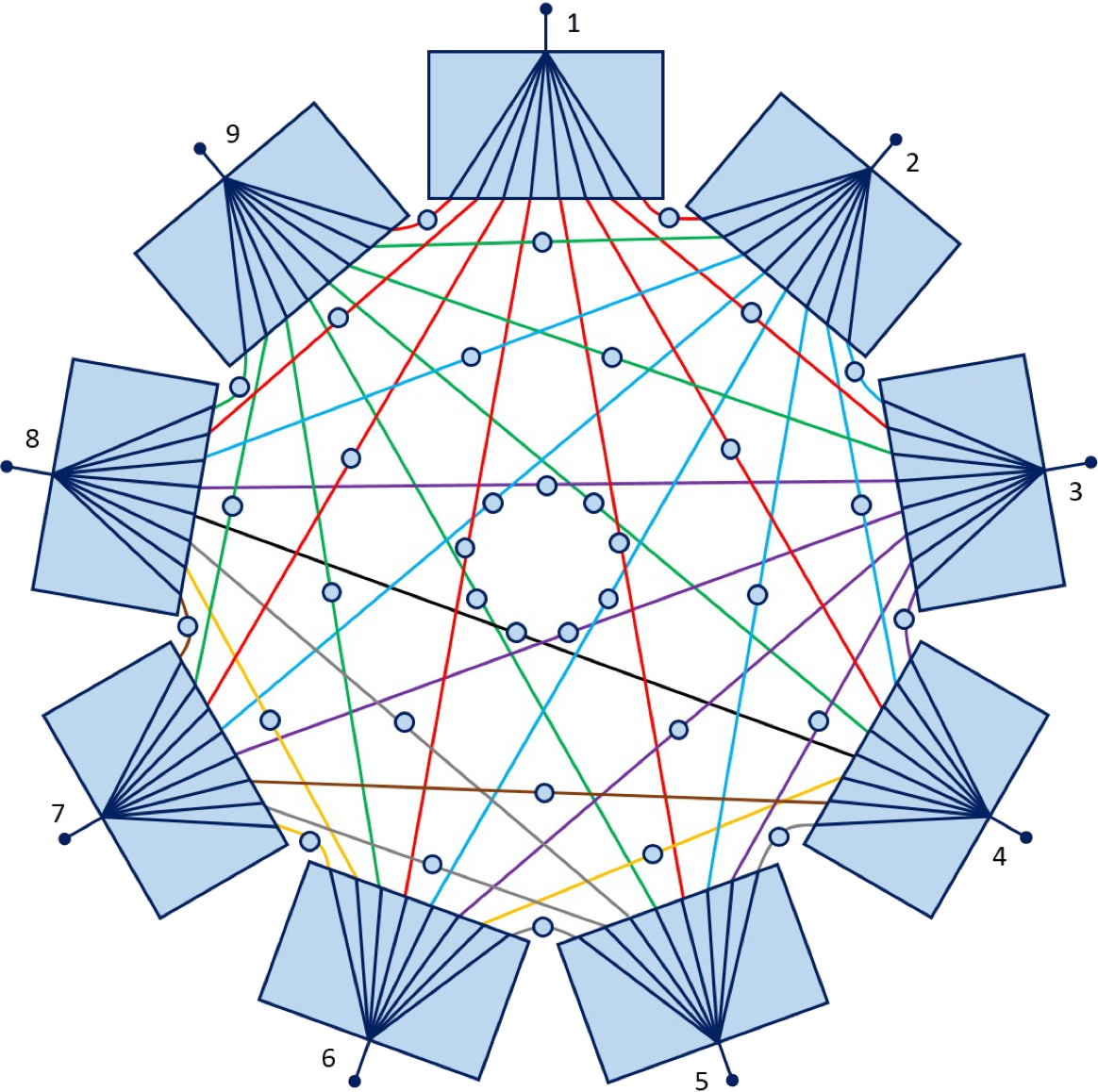

Mini-Circuits has developed a range of test systems for characterizing wireless mesh network devices. All external ports of the mesh are interconnected to simulate an over-the-air wireless mesh configuration. Programmable attenuators on each internal path allow the path loss to be varied independently between any pair of devices, without affecting communication between any other pair. This configuration allows the simulation of real-world mesh characteristics within a confined lab or production environment.
  • Configurations from 3 to N ports
  • Independently controlled attenuation on every path
  • Frequency range up to 40 GHz
  • Attenuation range up to 120 dB

Catalog Products

For special & custom products, please contact us.



Model Name Frequency (MHz) Ports Input
Power (dBm)		 Attenuation
Range (dB)		 Rack Height Connector Control
Low High
Sort Sort Sort Sort Sort Sort Sort Sort Sort
ZTMN-0495AN-HP 350 6000 4 47 95 3U N-type USB & Ethernet
ZTMN-0495AS 350 6000 4 27 95 2U SMA USB & Ethernet
ZTMN-0495BN-HP 10 800 4 47 95 3U N-type USB & Ethernet
ZTMN-0695A-T 2000 6000 6 30 95 2U TNC USB & Ethernet
ZTMN-0695B-N 600 6000 6 27 95 2U N-type USB & Ethernet
ZTMN-0695B-S 600 6000 6 27 95 2U SMA USB & Ethernet
ZTMN-0695C-S 2000 8000 6 25 95 2U SMA USB & Ethernet
ZTMN-0695D-T 10 800 6 37 95 2U TNC USB & Ethernet
ZTMN-0695E-S 5 1000 6 27 95 2U SMA USB & Ethernet
ZTMN-0895A-N 30 3000 8 27 95 2U N-type USB & Ethernet
ZTMN-0895A-S 30 3000 8 27 95 2U SMA USB & Ethernet
ZTMN-0895B-S 500 6000 8 30 95 3U SMA USB & Ethernet
ZTMN-0995A-S 500 6000 9 30 95 3U SMA USB & Ethernet
ZTMN-1695B-S 500 7200 16 25 95 5U SMA USB & Ethernet
ZTMN-0895C-S 600 7200 8 25 95 2U SMA USB & Ethernet
ZTMN-0995C-S 600 7200 9 25 95 3U SMA USB & Ethernet
