RF Signal Distribution Systems

For High-Volume Test Setups

For test systems requiring distribution of signal to many DUTs, Mini-Circuits’ signal distribution systems combine splitter/combiners and directional couplers to expand test signal into multiple channels. Amplifiers can also be incorporated to minimize path loss and manage signal power from input to output.

Wide selection of splitter/combiners and directional couplers in stock
Bandwidths up to 65 GHz
RF input power up to 250W
Rack-mounted, panel-mounted or benchtop structures

BROWSE CATALOG CONTACT US

Catalog Products

For special & custom products, please contact us.

New Products

Announcements

Active Splitters

Model Name	Frequency (MHz)		Function	Count	Gain (dB)	Mechanical
Model Name	Low	High	Function	Count	Gain (dB)	Form Factor	Height	Connectors

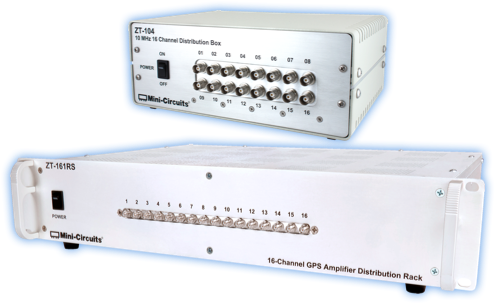

ZT-104	10	10	16-way active splitter	1	-6	Benchtop	3.85"	BNC
ZT-161RS	900	2250	16-way active splitter	1	22	Chassis	2U	SMA
ZT-338	950	2150	8-way active splitter	1	0.5	Chassis	1U	SMA
ZT-415	30	6000	8-way active splitter	1	1.5	Chassis	1U	N-type & SMA

Passive Splitter / Combiner / Coupler

Model Name	Frequency (MHz)		Function	Count	Input Power (W)	Mechanical
Model Name	Low	High	Function	Count	Input Power (W)	Form Factor	Height	Connectors
ZT-10HPS-272	700	2700	10-way high power splitter	1	100	Chassis	2U	N-type & SMA
ZT-16HPS-63W-S	700	6000	16-way high power splitter	1	100	Chassis	2U	N-type & SMA
ZT-184	500	6000	4-way splitter / combiner	10	30	Panel	3U	SMA
ZT-201	350	6000	2-way splitter / combiner	20	15	Chassis	4U	N-type
ZT-207	350	6000	2-way splitter / combiner	6	15	Chassis	3U	N-type & SMA
ZT-208	350	4600	4-way splitter / combiner	4	30	Chassis	3U	N-type
ZT-20HPS-63-S	2500	6000	20-way high power splitter	1	100	Chassis	2U	N-type & SMA
ZT-222	350	6000	2-way splitter / combiner	20	30	Panel	4U	N-type
ZT-229B	0.5	600	2-way splitter / combiner	16	1	Panel	2U	SMA
ZT-230	1	500	10 dB directional coupler	8	1.5	Panel	2U	SMA
ZT-245	300	1000	8-way splitter / combiner	1	10	Panel	1U	SMA
ZT-246	350	6000	2-way splitter / combiner	12	15	Chassis	2U	SMA
ZT-255	500	8500	2-way splitter / combiner	8	2	Panel	2U	SMA
ZT-256	DC	18000	2-way resistive splitter / combiner	12	0.1	Panel	2U	SMA
ZT-257	600	6000	4-way splitter / combiner	4	30	Panel	1U	SMA
ZT-277	600	6000	4-way splitter / combiner	3	30	Panel	1U	SMA
ZT-299	500	6000	8-way splitter / combiner	4	30	Panel	1U	SMA
ZT-304	500	6000	2-way splitter / combiner	8	30	Panel	1U	SMA
ZT-333	100	900	2-way splitter / combiner	4	5	Panel	1U	SMA
ZT-341	700	4000	4-way splitter / combiner	4	30	Panel	1U	BNC
ZT-351	10000	40000	4-way splitter / combiner	4	20	Panel	1U	2.92 mm
ZT-392	600	6000	4-way splitter / combiner	4	30	Panel	1U	SMA
ZT-393	600	6000	8-way splitter / combiner	2	30	Panel	1U	SMA
ZT-394	600	6000	16-way splitter / combiner	1	30	Panel	1U	SMA
ZT-401	600	7400	2-way splitter / combiner	10	30	Panel	1U	SMA
ZT-401BK	600	7400	2-way splitter / combiner	10	30	Panel	1U	SMA
ZT-402	30	2000	8-way splitter / combiner	2	0.6	Chassis	1U	SMA
ZT-406	800	2200	2-way splitter / combiner	16	1	Chassis	2U	SMA
ZT-429	DC	11000	2-way splitter / combiner	20	0.01	Chassis	4U	N-type

High Power Fixed Attenuator

Model Name	Frequency (MHz)		Attenuation (dB)	Count	Input Power (W)	Mechanical
Model Name	Low	High	Attenuation (dB)	Count	Input Power (W)	Form Factor	Height	Connectors
ZT-275	DC	18000	30	10	20	Panel	2U	SMA
ZT-358	DC	18000	20	10	20	Panel	2U	SMA
ZT-354	DC	18000	10	10	20	Panel	2U	SMA
ZT-337	DC	6000	30	4	100	Chassis	3U	N-type
