High Power Test Systems

Signal Sources, Amplifiers & Distribution

HTOL (high temperature operating life) is a test method intended to stress a device over an extended period of time, allowing calculation of a device’s longterm reliability. The test is applicable to a wide range of component and IC manufacturing applications, including amplifiers, filters and transceivers. Mini-Circuits offers all the building blocks required for HTOL testing, including a ready-made integrated system supplied in a rack cabinet.
  • Power splitters
  • High power amplifiers (HPAs)
  • High power splitters
  • Splitter arrays
  • Turnkey HTOL test system up to 80 channels

Catalog Products

For special & custom products, please contact us.

High Power Integrated Test Systems

Model Name Frequency (MHz) Output
Channels		 Power per
Channel(W)		 Description
HTOL-700-2700-1W 700 2700 80 1 High power signal source and distribution system
HTOL-2500-6000-1W 2500 6000 80 1 High power signal source and distribution system
HTOL-700-2700-3W 700 2700 80 3 High power signal source and distribution system

High Power Passive Systems | Rack-Mounted | Up to 100W

Model Name Frequency
(MHz)		 Power (W) Height Description
ZT-184 500 6000 30 3U 10 x 4-way splitter / combiner panel

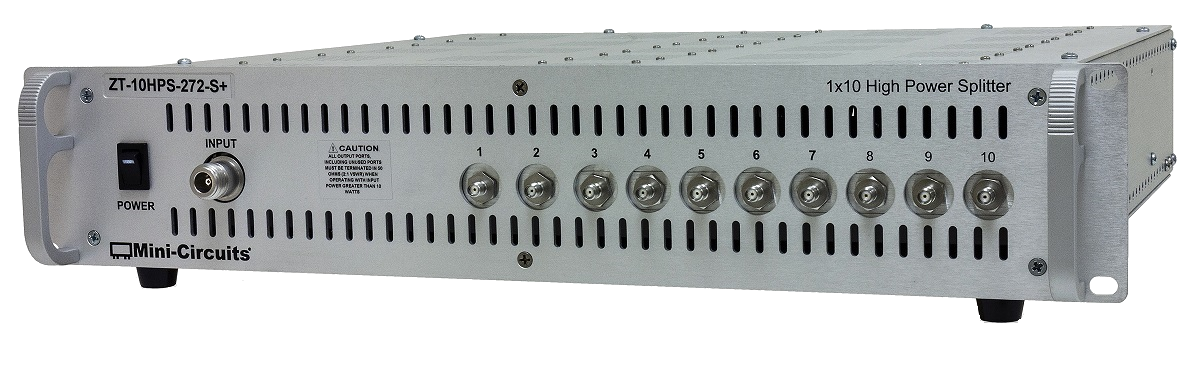

ZT-10HPS-272 700 2700 100 2U 10-way high power splitter
ZT-16HPS-63W-S 700 6000 100 2U 16-way high power splitter
ZT-20HPS-63-S 2500 6000 100 2U 20-way high power splitter
ZT-337 DC 6000 100 3U 4-channel 30 dB higher power attenuator
ZT-234 1 3000 100 4U High power switch / attenuator system

High Power Amplifiers | Rack-Mounted | Up to 100W

Model Name F Low
(MHz)		 F High
(MHz)		 Gain
(dB)Typ.		 NF
(dB)Typ.		 P1dB(dBm) Typ. OIP3(dBm) Typ. Input VSWR
(:1)Typ.		 Output VSWR
(:1)Typ.		 Voltage
(V)		 Current
(mA)		 Case Style Connector
Type		 Option
HPA-25W-63+ 700 6000 53 13 37 45 1.8 2.0 110/220 AC - NG1942 N -
HPA-25W-272+ 20 2700 50 10 38 50 1.3 2.5 110/220 AC - NG1942-1 N -
HPA-50W-63+ 700 6000 56 12 43 50 2.5 3 110/220 AC - NG1942 N -
HPA-100W-63+ 2500 6000 58 15 43 50 2.5 2.5 110/220 AC - NG1942 N -
HPA-272+ 700 2700 48 8.2 49 55 1.3 1.3 110/220 AC - NG1942 N -
