RF Test Solutions

Mini-Circuits' RF Test Solutions give engineers a fast, flexible way to build automated lab and production test setups, drawing on decades of expertise designing, manufacturing, and testing RF components. Every product is software-controlled via USB / Ethernet, built from Mini-Circuits' in-stock RF building blocks, and designed around simple, well-implemented features rather than unnecessary complexity — delivering high-quality performance at a fraction of the cost of legacy test equipment. Whether you need a standard off-the-shelf module or a fully custom system engineered to your exact specification, Mini-Circuits combines rapid turnaround, easy field maintenance, and full applications support to help you get your RF test system up and running quickly and affordably.

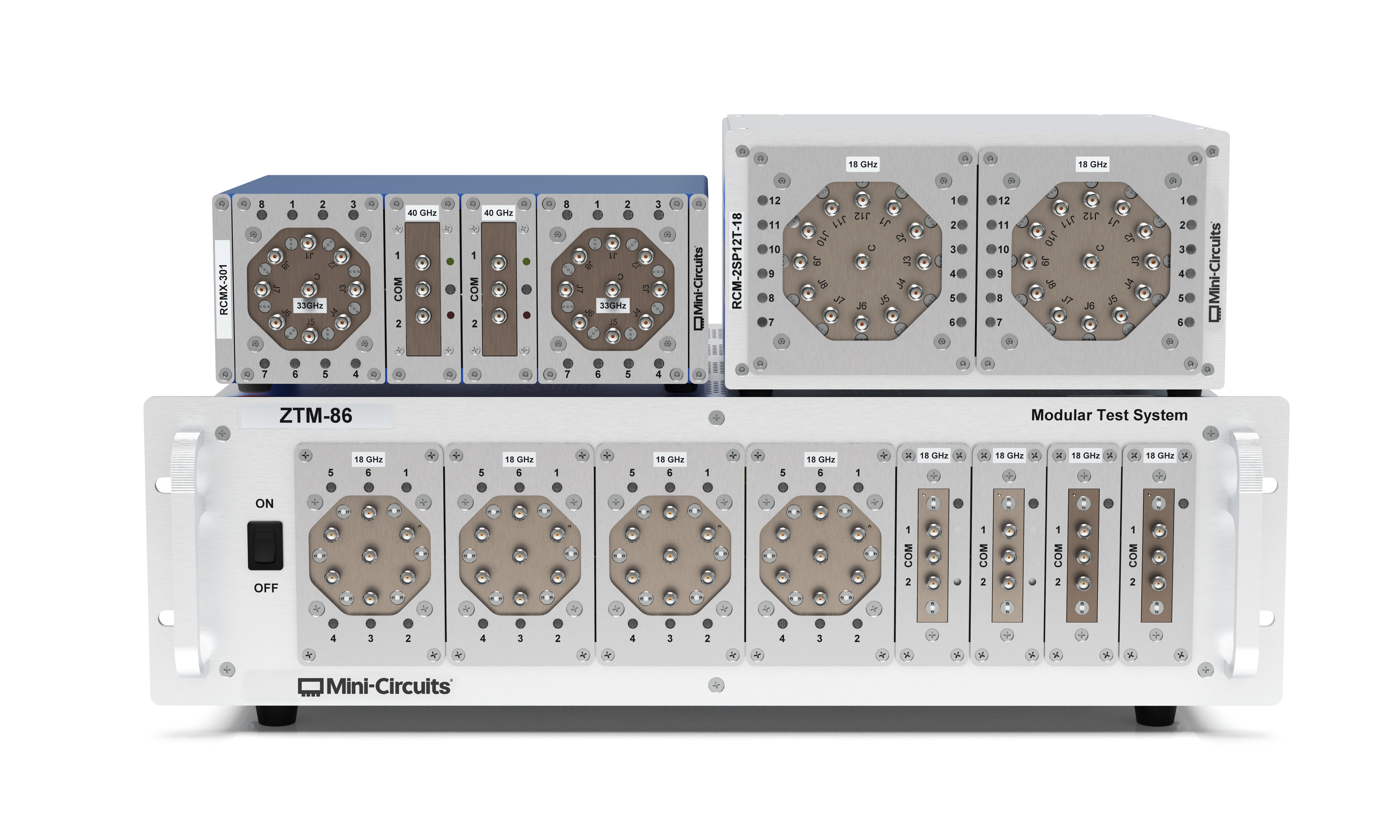

Modular Test
Systems

Build-to-order rack-mount and benchtop RF switch systems, configurable up to 67 GHz with fast turnaround and easy field maintenance / upgrade

Mechanical Switch Systems

High-reliability electromechanical SPDT to SP12T switch modules and rack systems for RF signal routing, with USB/Ethernet control and fast turnaround.

Solid State & MEMS Switches

Fast-switching solid-state RF switches with transition times as low as 5 ns and MEMS switches with billions of switching cycles, for mission-critical RF signal routing and automated test applications.

Mesh Network Test Systems

Passive mesh network emulators with independently controllable signal loss on each internal path for validation of Wi-Fi, Zigbee, Bluetooth & VHF / UHF mesh radio devices.

Programmable Attenuators

Software-controlled RF attenuators up to 67 GHz for simulating signal fading, transmission loss, and handover in test setups.

Butler
Matrices

Passive beamforming matrices with precise phase offsets for 5G and Wi-Fi MIMO test, multipath simulation and antenna beam-forming applications.

NxM Switch Matrices 50Ω/75Ω

Blocking, non-blocking, and full-fanout switch matrices for complex RF signal routing in mechanical or solid-state configurations.

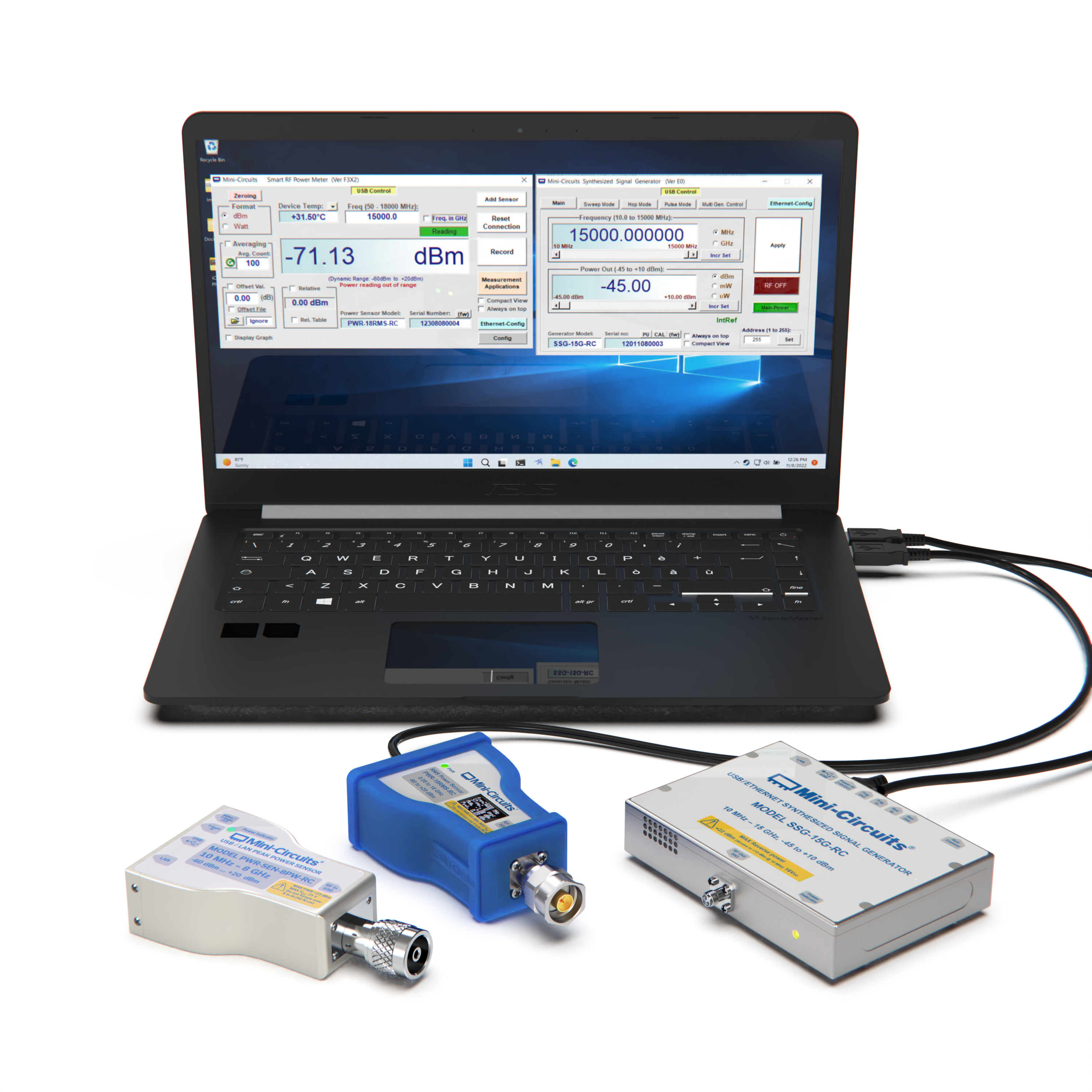

Signal Generation & Measurement

Lab-grade RF signal generators and power sensors with software support, easy VISA, USB & LAN integration, and flexible calibration options.

High Power Test Systems

High power amplifiers, splitters, and turnkey HTOL systems up to 80 channels for long-term semiconductor life & reliability testing.

Patch
Panels

Rack-mount patch panels and connector adapters for organized cable management in complex, high-volume RF test setups.

Active Splitters,
Couplers & Attenuators

Rack-mounted active & passive splitter / combiners, directional couplers and attenuators for RF signal distribution and automated test systems.

Custom RF Test Solutions

Custom-built RF test and signal routing systems from Mini-Circuits' in-stock components, engineered to your specification with fast turnaround and full applications support.

Already have a system?

Get the software and code examples to start controlling your unit.

Want to Learn More?

Click below to read up on more information
