Custom RF Test Equipment & Integrated Test Systems

Custom RF Test Equipment

Integrated Test Systems Tailored to Your Requirements

Our experience in the test space has evolved according to your needs. The diversity of customer requirements for highly customized test solutions has led us to build our business around principles of flexibility, reliability, economy and speed. Our wealth and variety of components in stock allows us to take a building-block approach to developing custom equipment for your unique needs with exceptionally fast turnaround.

Designed and built to your unique test requirements
All systems fully characterized during production
On-site integration available when needed
Full GUI and API for programming with your native test software

Multi-Channel Amplifiers

Customized solutions available using Mini-Circuit’s extensive range of amplifier components
Rack-mount chassis with integrated AC power and cooling
Rugged designs ideal for demanding lab use

Model	Frequency (MHz)		Description	Form Factor	Height	Connectors	Power Supply	Control
Model	Low	High	Description	Form Factor	Height	Connectors	Power Supply	Control
ZT-2ZVA-2135	800	21,000	2-Channel Amplifier	Chassis	2U	3.5 mm	100-240 VAC	---
ZT-414	50	300	4-Channel Amplifier	Chassis	3U	SMA	100-240 VAC	---
ZT-285	500	2,500	12-Channel Amplifier	Chassis	2U	SMA	100-240 VAC	---

Satcom Installations with Dual Redundant Power Supplies

Dual redundant power supply configurations ensure reliable long-term operation in environments where interruptions in service cannot be tolerated
Separate AC sources and inputs ensure continued operation in the event of a failure in either one of them
Ideal for satcom applications and remote test installations

Model	Frequency (MHz)		Description	Form Factor	Height	Connectors	Power Supply	Control
Model	Low	High	Description	Form Factor	Height	Connectors	Power Supply	Control

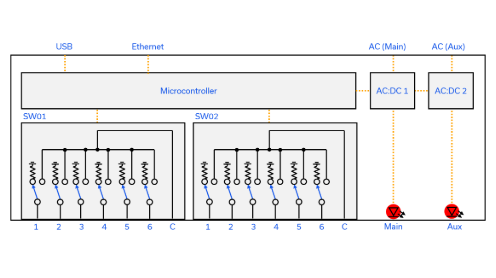

ZT-272	5	2,700	6 Input x 4 Output Matrix	Chassis	2U	SMA	Dual-redundant 100-240 VAC	USB & LAN
ZT-2SP6T-12DPS	DC	12,000	2 x SP6T Mechanical Switch	Chassis	2U	SMA	Dual-redundant 100-240 VAC	USB & LAN

75Ω Test Systems

Mini-Circuits has a broad range of components and systems specified for 75Ω CATV, DOCSIS, satcom and other applications, with custom test integrations available on request.

Model	Frequency (MHz)		Description	Form Factor	Height	Connectors	Power Supply	Control
Model	Low	High	Description	Form Factor	Height	Connectors	Power Supply	Control
ZT-249	5	1,220	8-Channel CMTS Diplexer	Chassis	2U	F-type	100-240 V AC	USB & LAN
RCM-3SPDT-75F	DC	2,150	3 x SPDT Mechanical Switch	Benchtop	4.25"	F-type	24V DC	USB & LAN
ZTVX-8-75-N	5	2,500	2 x 8 Blocking Switch Matrix	Chassis	3U	N-type	100-240 V AC	USB & LAN
ZTVX-10-75-N	5	2,500	2 x 10 Blocking Switch Matrix	Chassis	4U	N-type	100-240 V AC	USB & LAN
ZTVX-12-75-N	5	2,500	2 x 12 Blocking Switch Matrix	Chassis	4U	N-type	100-240 V AC	USB & LAN
ZTVX-16-75-N	5	2,500	2 x 16 Blocking Switch Matrix	Chassis	4U	N-type	100-240 V AC	USB & LAN

Custom Test Integrations

Custom integrations of RF components and accessories can be configured according to your requirements
Please contact us to discuss.

Model	Frequency (MHz)		Description	Form Factor	Height	Connectors	Power Supply	Control
Model	Low	High	Description	Form Factor	Height	Connectors	Power Supply	Control
ZT-254	1,000	3,000	4-Band Switched Filter Bank	Chassis	2U	N-type	100-240 V AC	USB & LAN
ZT-228	2,400-2,500	5,700-5,900	4 x WiFi Diplexing Amplifier	Chassis	1U	SMA	100-240 V AC	---

Custom RF Test Equipment

Integrated Test Systems Tailored to Your Requirements

Multi-Channel Amplifiers

Satcom Installations with Dual Redundant Power Supplies

75Ω Test Systems

Custom Test Integrations

Want to Learn More?

Click below to read up on more information

Contact Us

Tell us about your requirements, and one of our engineers will get in touch!
