Programmable Attenuator Modules

Single- and Multi-Channel Designs

Mini-Circuits’ compact programmable attenuators are designed with wide attenuation ranges and fine step sizes for precise signal level control. Coupled with our standard USB & Ethernet control interfaces, these devices are easily integrated into any test system for simulation of transmission loss, signal fading, cross talk and power level calibration.

Supporting applications up to 67 GHz
Attenuation range up to 120 dB
Step size as fine as 0.05 dB
Sweeping and hopping capability
USB, Ethernet, RS232, and SPI control options

BROWSE CATALOG CONTACT US

Catalog Products

For special & custom products, please contact us.

New Products

Announcements

Programmable Attenuators | USB / SPI / Ethernet / RS232 | 9 KHz to 67 GHz | 0 to 120 dB

Model Number	Case Style	Control Interface	Number of Channels	F Low (MHz)	F High (MHz)	Attenuation Range (dB), Typ	Attenuation Step (dB), Typ	Insertion Loss (0 dB Setting) (dB), Max	Attenuation Accuracy (dB), Typ	Max Input Power (dBm)	IP3 (dB), Typ

EDAT-67G-60	WP3287 LxWxH 3.500x0.984x0.925	USB & Daisy-chain	1	10	67000	63	0.5	17	± 1.85	26	50
EDAT-67G-30	WP3287 LxWxH 3.500x0.984x0.925	USB & Daisy-chain	1	10	67000	31.5	0.5	13.5	± 2.3	26	50
RC4DAT-6G-60	QE2249 LxWxH 3.00x5.17x.85	USB & Ethernet	4	1	6000	63	0.25	7.5	± 0.6	23	53
RC4DAT-6G-95	QE2249 LxWxH 3.00x5.17x.85	USB & Ethernet	4	1	6000	95	0.25	10.0	± 0.4	20	54
RC4DAT-6G-30	QE2249 LxWxH 3.00x5.17x.85	USB & Ethernet	4	1	6000	30	0.25	5.0	± 0.35	23	53
RC4DAT-8G-95	QE2972 LxWxH 3.00x5.17x0.60	USB & Ethernet	4	1	8000	95	0.25	12.0	± 0.8	28	51
RC4DAT-8G-95PE	QE2972 LxWxH 3.00x5.17x0.60	USB & Ethernet	4	1	8000	95	0.25	12.0	± 0.8	28	51
RC4DAT-8G-120H	QE2671 LxWxH 3.00x7.00x0.60	USB & Ethernet	4	200	8000	120	0.05	14.5	± 2.1	23	50
RC8DAT-8G-95	QE2899 LxWxH 3.00x5.92x1.16	USB & Ethernet	8	1	8000	95	0.25	12.0	± 1.8	28	51
RC8DAT-8G-95PE	QE2899 LxWxH 3.00x5.92x1.16	USB & Ethernet	8	1	8000	95	0.25	12.0	± 1.8	28	51
RCDAT-6G-120H	MS1897 LxWxH 3.00x2.50x.85	USB & Ethernet	1	200	6000	120	0.05	11.3	± 1.0	23	51
RCDAT-8G-120H	MS1897 LxWxH 3.00x2.50x.85	USB & Ethernet	1	200	8000	120	0.05	14.5	± 1.0	23	51
RCDAT-18G-63	QF3189 LxWxH 4.00x2.61x0.85	USB, Ethernet, RS232 & TTL	1	100	18000	63	0.25	10.0	± 0.7	24	50
RCDAT-30G-30	MS2523 LxWxH 4.00x1.75x.92	USB & Ethernet	1	100	30000	30	0.5	16.0	± 0.8	24	38

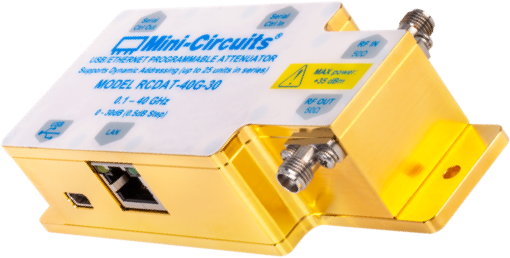

RCDAT-40G-30	MS2523 LxWxH 4.00x1.75x.92	USB & Ethernet	1	100	40000	30	0.5	16.0	± 1.0	24	38
RCDAT-44G-63	MS2523-1 LxWxH 4.75x1.75x1.02	USB & Ethernet	1	100	43500	63	0.5	16.0	± 1.0	28	50
RCDAT-44G-30	MS2523 LxWxH 4.00x1.75x.92	USB & Ethernet	1	100	44000	31.5	0.5	11	± 1.0	24	50
RCDAT-50G-30	MS2523 LxWxH 4.00x1.75x.92	USB & Ethernet	1	100	50000	31.5	0.5	11.0	± 1.0	28	50
RCDAT-3000-63W2	MS2065 LxWxH 3.00x2.50x.85	USB & Ethernet	1	50	3000	63	1.0	7.5	± 0.4	33	54
RCDAT-4000-120	MS1897 LxWxH 3.00x2.50x.85	USB & Ethernet	1	1	4000	120	0.25	10.5	± 0.5	20	53
RCDAT-6000-30	MS1897 LxWxH 3.00x2.50x.85	USB & Ethernet	1	1	6000	30	0.25	5.0	± 0.4	20	56
RCDAT-6000-60	MS1897 LxWxH 3.00x2.50x.85	USB & Ethernet	1	1	6000	60	0.25	7.5	± 0.3	20	55
RCDAT-6000-90	MS1897 LxWxH 3.00x2.50x.85	USB & Ethernet	1	1	6000	90	0.25	10.0	± 0.4	20	54
RCDAT-6000-110	MS1897 LxWxH 3.00x2.50x.85	USB & Ethernet	1	1	6000	110	0.25	11.5	± 0.45	20	53
RCDAT-8000-30	MS1897 LxWxH 3.00x2.50x.85	USB & Ethernet	1	1	8000	30	0.25	6.0	± 0.4	28	52
RCDAT-8000-60	MS1897 LxWxH 3.00x2.50x.85	USB & Ethernet	1	1	8000	60	0.25	10.0	± 0.75	28	51
RCDAT-8000-90	MS1897 LxWxH 3.00x2.50x.85	USB & Ethernet	1	1	8000	90	0.25	10.0	± 0.8	28	51
RUDAT-13G-90	QF3370 LxWxH 2.00x3.75x0.68	USB, SPI & RS232	1	10	13000	90	0.5	17.5	± 0.6	23	41
RUDAT-13G-60	QF3370 LxWxH 2.00x3.75x0.68	USB, SPI & RS232	1	10	13000	60	0.5	14	± 0.5	23	41
RUDAT-4000-120	MS1813 LxWxH 3.00x2.00x.60	USB & RS232	1	1	4000	120	0.25	10.5	± 0.5	20	53
RUDAT-6000-30	MS1813 LxWxH 3.00x2.00x.60	USB & RS232	1	1	6000	30	0.25	5.0	± 0.3	20	50
RUDAT-6000-60	MS1813 LxWxH 3.00x2.00x.60	USB & RS232	1	1	6000	60	0.25	7.0	± 0.3	20	50
RUDAT-6000-90	MS1813 LxWxH 3.00x2.00x.60	USB & RS232	1	1	6000	90	0.25	10.0	± 0.4	20	50
RUDAT-6000-110	MS1813 LxWxH 3.00x2.00x.60	USB & RS232	1	1	6000	110	0.25	11.5	± 0.45	20	53

Rack-Mounting Brackets / Accessories

Please contact testsolutions@minicircuits.com for price and availability information
Custom rack configurations & accessories available on request

Bracket Name	Rack Height	Supported Models	# per Bracket	Description
RKT-RC4DAT	3U	RC4DAT-6G-30 RC4DAT-6G-60 RC4DAT-6G-95	8	Rack-mounting bracket for up to 8 supported attenuators
RKT-RC4DAT-2	1U	RC4DAT-8G-95	2	Rack-mounting bracket for up to 2 supported attenuators
